Growatt 6000w and Dyness 5.12 Lithium Battery Combo Power Kit 6x Solar 460w Solar Panels Mono
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Growatt 6000w and Dyness 5.12 Lithium Battery Combo Power Kit 6x Solar 460w Solar Panels Mono
Growatt 6kW Off-Grid Solar Inverter 48VDC SPF6000ES Plus
Features:
- Output power factor up to 1.0
- 2 times peak power ability
- Grid and Generator two AC inputs with integrated transfer switch
- Up to 6 units in parallel for capacity extension
- Plug-and-play quick connection PV terminals
- Support WiFi and GPRS remote monitoring
- Timing charging and output control
- Built in dust-proof kit for harsh environment
- Pure sine wave AC output
- Solar and utility grid can power loads at the same time
- With CAN/RS485 for BMS communication
- WIFI Dongle (INCLUDED)
Inverter Output:
- Battery Voltage: 48VDC
- Battery Type: Lithium/Lead-Acid
- Rated Power: 6000VA/6000W
- Parallel Capability: Yes, 6 units maximum
- Surge Power: 12000VA
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC – 450VDC
- Max. Input current per MPP tracker: 16A
- Maximum Solar Charger Current: 100A
AC Charger:
- Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
- Wifi Dongle Included
DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery
Elevate your energy storage capability with this advanced, high-performance lithium battery solution, engineered for maximum flexibility, safety, and power output. Designed to adapt seamlessly to your space, it supports Wall Mount, Floor Mount, and Rack Mount configurations while streamlining setup through an easy installation process using only a single bracket.
Product Features:
-
Supports Wall Mount, Floor Mount & Rack Mount
-
1C Discharge
-
Connect up to 50 Units in Parallel
-
Module Free Design
-
Integrated Aerosol Fire Suppression
-
IP20 Ingress Protection
-
Wide Compatibility
-
8000 Cycle Life Span
-
Backward Compatible with DL5.0C Range (Without LINK Module)
-
95% DOD
- Easy Installation using only 1 Bracket
- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.
7 Years Warranty

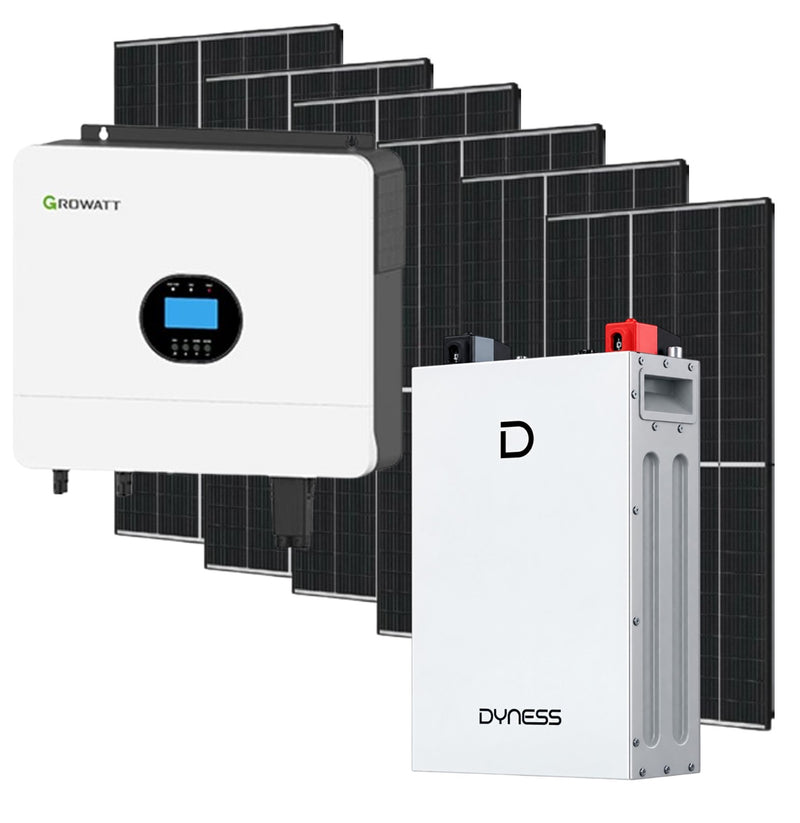

Combo includes:
- 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
- Growatt Wifi Dongle
- 1x DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery 7 Year Warranty
- Battery cables included
- 6 X 460w Mono Solar Panel Mono Megatron
