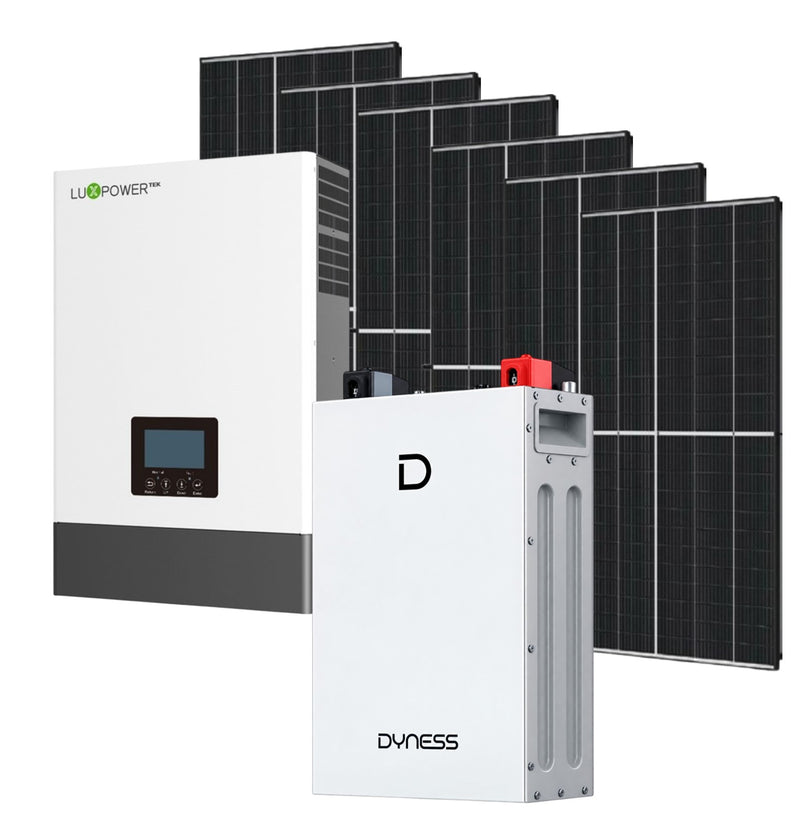

Luxpower 5KVA Inverter and Battery Combo Dyness 5.12KW Lithium Battery + 6X 460W Solar Panels
Available Online & In-Store, Pay on Collection
Delivery Estimate 1-2 Business Days
Luxpower 5KVA Inverter and Battery Combo Dyness 5.12KW Lithium Battery + 6X 460W Solar Panels
LuxPower 5kW Inverter – SNA5000 Hybrid Inverter
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
What's in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery
Elevate your energy storage capability with this advanced, high-performance lithium battery solution, engineered for maximum flexibility, safety, and power output. Designed to adapt seamlessly to your space, it supports Wall Mount, Floor Mount, and Rack Mount configurations while streamlining setup through an easy installation process using only a single bracket.
Product Features:
-
Supports Wall Mount, Floor Mount & Rack Mount
-
1C Discharge
-
Connect up to 50 Units in Parallel
-
Module Free Design
-
Integrated Aerosol Fire Suppression
-
IP20 Ingress Protection
-
Wide Compatibility
-
8000 Cycle Life Span
-
Backward Compatible with DL5.0C Range (Without LINK Module)
-
95% DOD
- Easy Installation using only 1 Bracket
- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.
7 Years Warranty
Combo includes:
- 1x DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery (7-year warranty)
- 1x Luxpower 5kw + Wifi Dongle Inverter (2 year warranty)
- 6x 460w Mono Solar Panel Mono Megatron
- Battery Cables And Brackets Included
-
(Courier for panels are at your own risk)
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
