Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V - MacSell Solar Outlet
Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V
Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V
Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V - MacSell Solar Outlet

Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V

Save R 900.00 Save R 900.00
R 17,400.00
R 17,400.00 - R 17,400.00
R 17,400.00
R 16,500.00
R 16,500.00 - R 16,500.00
R 16,500.00
    Visa Mastercard mobicred Zapper Maestro PayFast Instant EFT Google Pay
Availability:
in stock, ready to be shipped

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

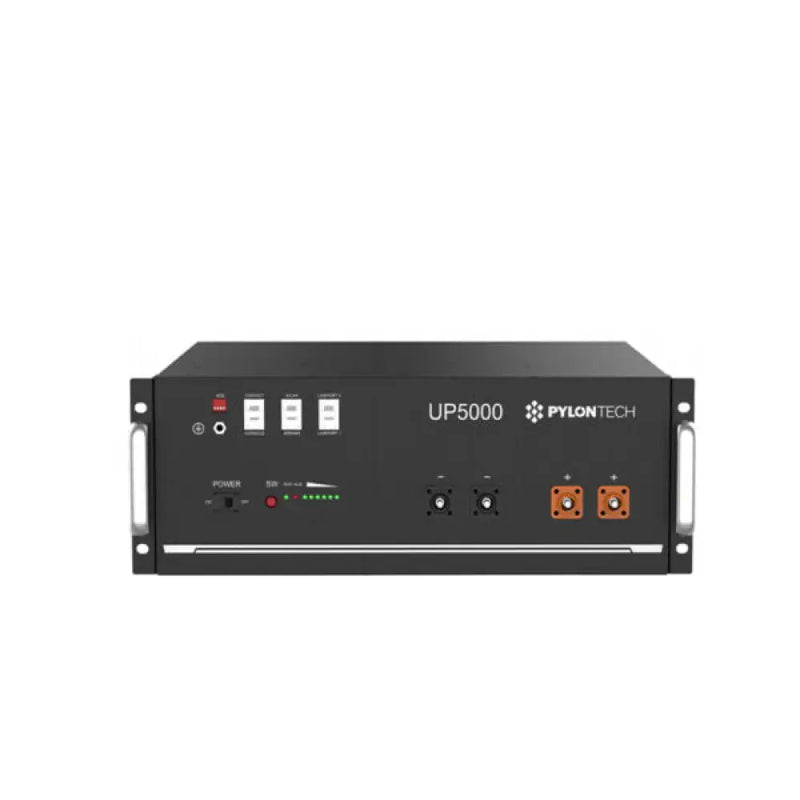

Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V



Pylontech UP5000 4.8 kWh Li-Ion Battery (48 V)
Model: UP5000
Brand: Pylontech
Type: 48 V LiFePO₄ (Lithium Iron Phosphate) Battery Module

Key Features

  • Compact 4.8 kWh nominal capacity — ideal for smaller solar storage, backup or modular expansion.

  • High usable capacity (≈4.56 kWh) thanks to deep-discharge (95% DoD) capability.

  • Modular and scalable — can parallel multiple units (up to 16 modules) to scale system capacity.

  • LiFePOâ‚„ cell chemistry — known for long cycle life, stability and enhanced safety.

  • Built-in Battery Management System (BMS) — protecting against over-voltage, over-current, temperature extremes and ensuring reliability.

  • Compact footprint and manageable weight, engineered for modern installation environments.

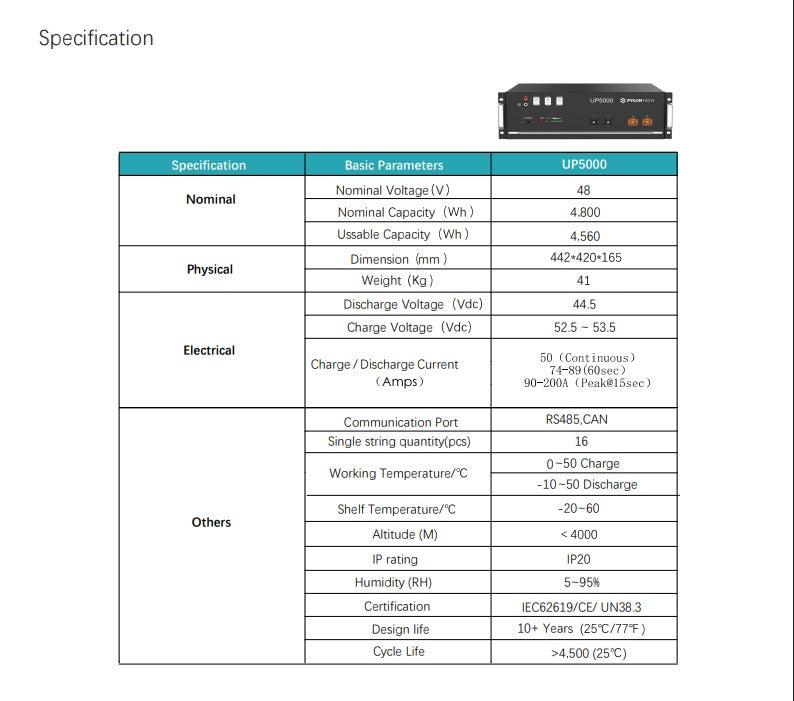

Specifications

Specification Value
Model UP5000
Nominal Energy Capacity 4.8 kWh
Usable Capacity ~4.56 kWh
Nominal Voltage 48 V
Usable Depth of Discharge 95%
Module Dimensions (approx.) 442 × 420 × 165 mm (or similar)
Net Weight (approx.) ~40 kg
Warranty 5 Years (region dependent)

Quality & Support
Pylontech is a respected brand in residential and commercial energy-storage modules. The UP5000 offers proven performance, modular expandability and integration flexibility with many inverter systems. Scalable, safe and ready for modern storage needs.

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
